Moto Guzzi Nevada 350

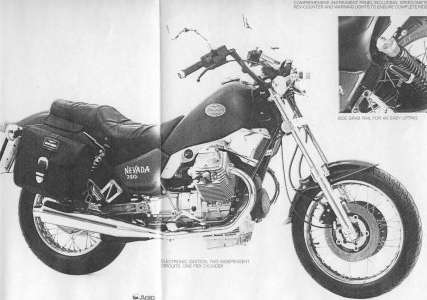

Ik ben in afwachting van een betere foto, deze geeft wel een idee van de Nevada 350.
TECHNICAL SPECIFCATI0NS:
Engine 90° V-twin. 4-stroke, "Nigusil" cylinder lining
Displacement 346.2 cc
Bore and stroke 66 x 50,6 mm
Output 22 kW [30 HP] at 8200 r.p.m. [DIN rules]
Max torque 30 Nm [3.1 Kgm] at 6200 r.p.m. [DIN rules]
Fuel Delivery two Dell'Orto carburettors PHBH 28
Ignition electronic Motoplat doublé pick-up
Compression ratio 10.6 :1
Timing O.H.V.. 2 valves per cylinder
Lubrication by pressure pump
Starting electric
Clutch single plate, dry type
Gearbox 5-speed, constant mesh gears
Transmission primary by gears, secondary by cardan shaft with universal joint and bevel gears
Frame tubular steel duplex cradle. disassemblable
Suspensions front Moto Guzzi hydropneumatic telescopic fork with pressure equalizer rear swinging fork, light alloy die-casting, with Bitubo adjustable shock-absorber
Wheels spokes with light alloy rim
Tyres front 100/90 H18 or V18. Tube type rear 130/90 H16 or V16 Tube type
Brakes front dual discs 0 270 mm, rear single disc 0 260 mm
Electrical system 12V, 14V-20A alternator; 12V-18Ah battery
Instrument panel speedometer, rev-counter and warning lights
Fuel tank capacrty 16 l. [3.52 Imp. gal.]
Fuel consumption 5 l. x 100 Km [CUNA rules]
Max speed 150 Km/h approx [93 mph]
Dry weight 175 Kgs [385 Ib]
