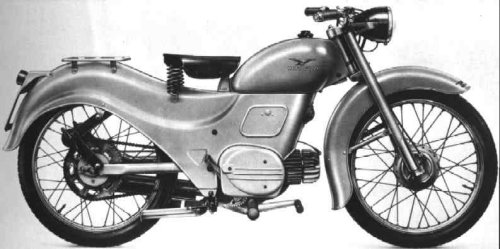

Moto Guzzi Zigolo Tourismo (1954)
Model / year |
Zigolo Tourism / 1953-56
|
Motor |
two 50 times single cylinder
horizontal 50 x milimeter / 98 cc
|
Compression ratio |
6:1
|
Power |
4 CV to 5200 giri/min
|
Head of the cylinder |
in light alloy
|
Cylinder |
in cast iron
|
Disposition valves |
-
|
Commando valves |
-
|
Ignition |
to they fly magnet
|
Carburetor |
Of Garden Maf 15 B 1
|
Lubrication |
to mixture 5 %
|
Clutch |
to multiple discs to oil bath
|
Change |
to gears always in taken to 3
speeds with commando to pedal
|
Transmission |
primary to helicoidal gears,
secondary to chain
|
Chassis |
monobeam in tube with carrying
auto body partially
|
Step |
1240 milimeter
|
Front suspension |
telescopic staple
|
Posterior suspension |
forcellone oscillating with
shocks-absorber to clutch
|
Wheels |
to beams with circles from 19
"
|
Tires |
2.50-19 "
|
Brakes |
to expansion; front handbook,
posterior to pedal
|
Weight |
78 kg
|
The maximum speed |
76 km/h
|
Normal consumption |
2.2 liters every 100 km
|
Ability tank mixture |
13.5 liters
|
Lubricating ability |
-
|
