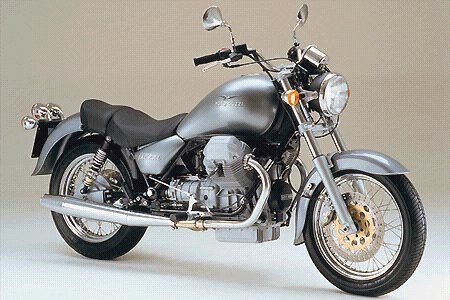

Moto Guzzi Jackal
Technical Specifications (America 2000)
Engine Type: 4 stroke air cooled
Displacement: 1064CC, 90° V-twin
Bore/Stroke: 92mm x 80mm
Max. Power: 74 HP at 6400 rpm
Max. Torque: 70 ft/lbs. at 5000 RPM
Fuel Supply: Multipoint sequential ignition; two 40mm diameter throttle
bodies with Weber IW 031 injectors
Cooling System: air-cooled
Ignition: Magneti Marelli IAW electronic digital ignition with inductive
spark
Clutch: twin disc sump
Compression Ratio: 9.5 : 1
Valves and Operation: 2 Overhead valves with light alloy push-rods and
rockers
Starting: electric
Lubrication: forced lube with gear pump and pressure regulator
Transmission: primary: helical gears; secondary: shaft
Gearbox: 5 Speed, constant mesh gears with built in cush drive
Frame: detachable tubular steel duplex cradle
Suspension: Front:45mm hydraulic telescopic fork; rear swinging arm with
two preload adjustable spring shock
absorbers
Electrical System: 12 V; 14 V 25A alternator; 30 Ah battery
Brakes: front: single Brembo ORO series stainless steel floating disc
320mm; rear: single stainless steel 282mm fixed
disc; front caliper: Brembo ORO series with 4 differentiated pistons;
parallel 2-piston rear caliper
Wheels: front 2.50×18" - rear: 3.50×17"
Tires: Front 110 / 90 VB 18; Rear: 140 / 80 VB 17
Fuel Tank Capacity: 5.0 Gallons
Fuel Consumption: 47 MPG
Dry Weight: 542 lbs.
Maximum Speed: 124 mph
Colors: Red, Black or Silver
Suggested Retail Price: $ 8,495.00
