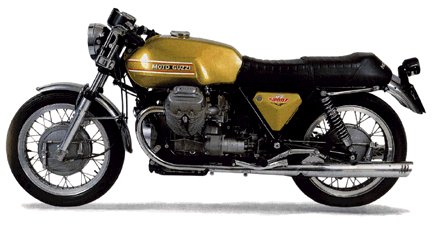

Moto Guzzi V7 Sport

Model / year V7 Sport / 1972-1974

Engine 4-stroke 90 degree V-twin 82.5 x 70 mm / 748 cc

Compression ratio 9.8:1

Output 70 hp at 6300 rpm

Cilinder head light alloy with valve seat inserts

Cylinder light alloy with chromed liner

Valve arrangement inclined overhead

Valve gear push rod and rocker arm

Ignition coil

Carburettor Dell'Orto VHB 30 CD, VHB 30 CS

Lubrication wet-sump and gear driven pressure pump

Clutch dry dual plate type

Gearbox foot-change 5-speed constant-mesh

Transmission primary, helical gear: final drive, shaft

Frame tubular duplex cradle

Wheelbase 1470 mm

Front suspension teledraulic fork

Rear suspension swinging arm with teledraulic dampers

Wheels spoked: front, WM 2/1.85 x 18; rear, WM 3/ 2.15 x 18

Tyres front 3.25-18'\ rear 3.50-18'

Brakes expansion type: front manual (tour shoes); rear pedal

Weight 206 kgs

Max speed approx. 200 km/h

Normal consumption (Cuna stds.) 8.5 litres per 100 kms

Fuel tank capacity 22.5 litres

Lubricani capacity 3.5 litres

Prijs in 1973 : f 8.788,32

Er zijn er 3791 gemaakt, met de volgende framenummers: VK 11111 t/m VK 13840 en nog een aantla naar de usa met nummers vanaf VK14000
