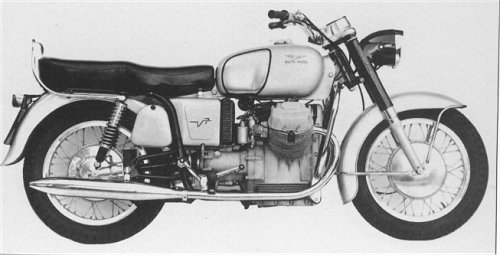

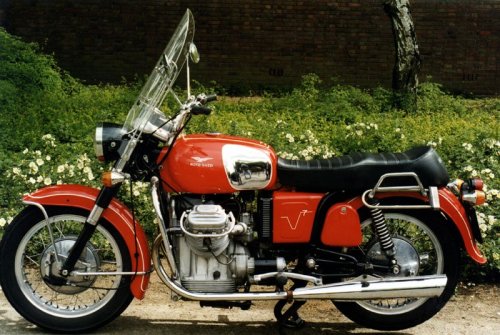

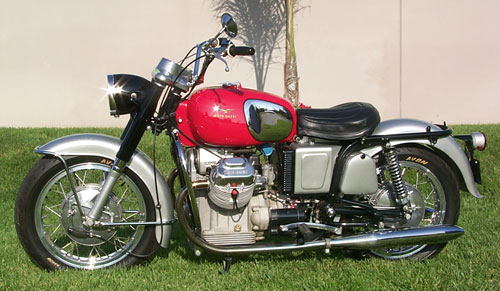

Moto Guzzi V 7

Moto Guzzi V 7

Model / year V7 / 1967-1969

Engine 4-stroke 90 degree V-twin 80 x 70 mm / 703.3 cc

Compression ratio 9:1

Output 40 hp at 5000 rpm

Cylinder head light alloy with valve seat inserts

Cylinder light alloy with chromed liner

Valve arrangement inlined overhead

Valve gear push rod and rocker arm

Ignition coil

Carburettor Dell'Orto SS I 29 DS, SS I 29 D

Lubrication wet sump and gear driven pressure pump

Clutch dry dual plate type

Gearbax foot-change 4-speed constant-mesh

Transmission primary, gear driven; final drive, shaft

Frame tubular duplex cradle

Wheelbase 1445 mm

Front suspension teledraulic fork

Rear suspension swinging arm with teledraulic dampers

Wheels spoked with 18 x 3.00 rims

Tyres 4.00-18"

Brakes expansion type: front, manual (twin-cam); rear, pedal

Weight 230 kgs

Max speed approx. 164 km/h

Normal consumption (Cuna stds.) 7.3 litres per 100 kms

Fuel tank capacity 20 litres

Lubricant capacity 3 litres
